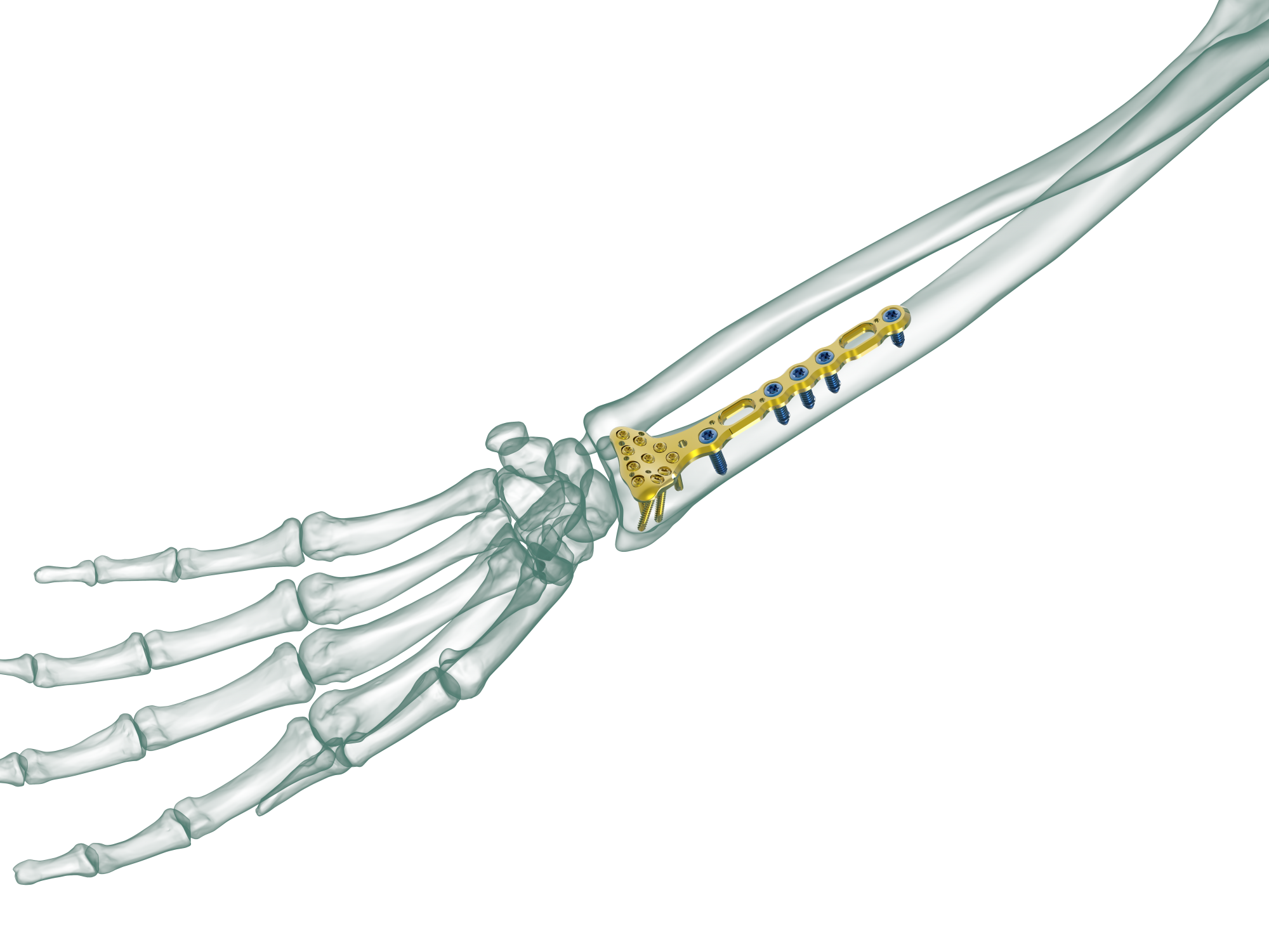

TRUE LOCK Distal Radius Volar Anatomic Plate

TRUE LOCK Distal Radius Volar Anatomic Plates are indicated for fixation of complex intra and extra-articular fractures and corrective osteotomies of the distal radius.

Distal Radius fractures constitute 8-15% of all fractures.

Anatomical plate; right & left

8 hole option between 3-15

TRUE LOCK Distal Radius Volar Anatomic Plates  are made of Ti6Al4V ELI material (ASTM F136)

Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.
Precon- toured for anatomic fit on the volar aspect of the distal radius. Multiple locking screw holes in the head of the plate provide additional fixation of the radial and intermediate columns, with screw trajectories designed to address a wide variety of fracture types. Specifically, two screws are angled to capture the radial styloid and prevent rotation of these fragments.
The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
Elongated Combi holes in the neck and shaft facilitate plate adjustment and allow locking or compression options.
Kirschner wire holes accept Kirschner wires (up to 2.0 mm) to temporarily fix the plate to the radius , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the radius.
