TRUE LOCK Proximal Tibia Lateral Anatomic Plate

TRUE LOCK Proximal Tibia Lateral Anatomic Plates are indicated for;


Split-type fractures of the lateral tibial plateau

–  Lateral split fractures with associated depressions


Split or depression fractures of the medial plateau

Tibia plateau fractures make up 1-2% of all fractures and are in the third rank of adult fractures in terms of their incidence during 50 years of life.

Plateau fractures involving the tibia upper end joint range widely from complex fractures caused by mild injuries.

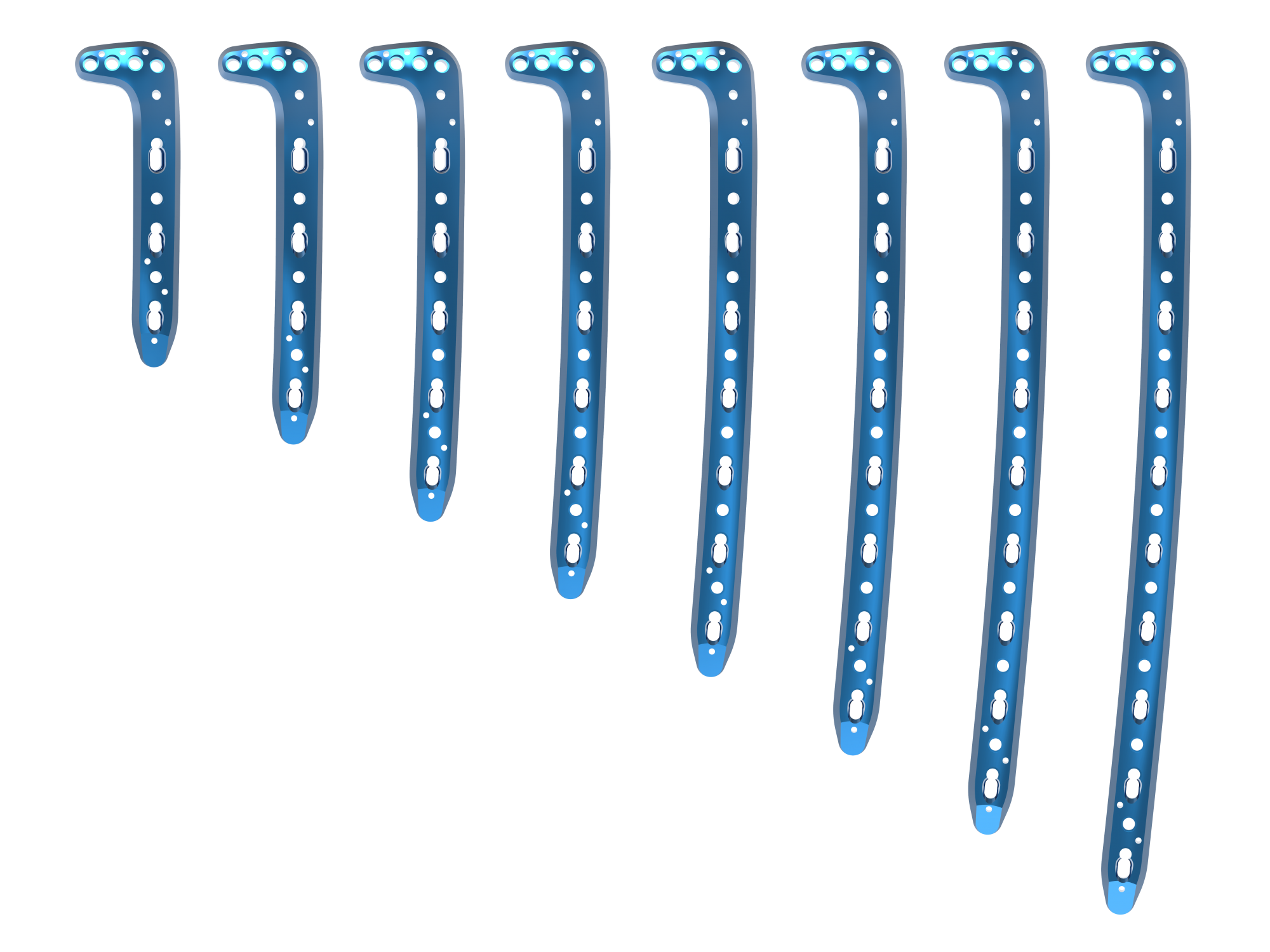

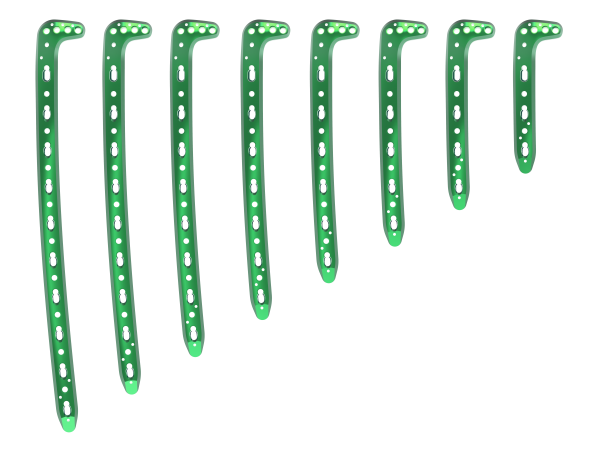

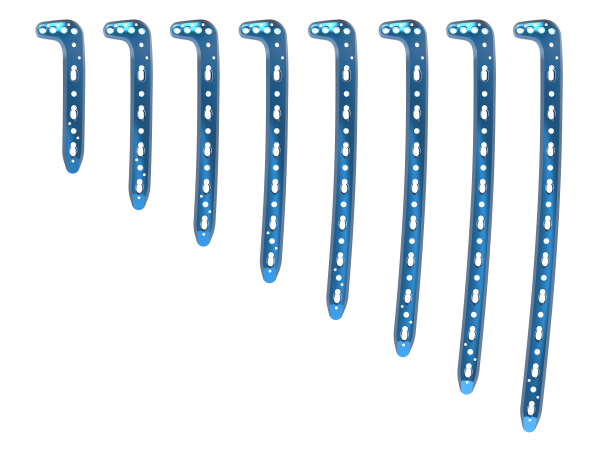

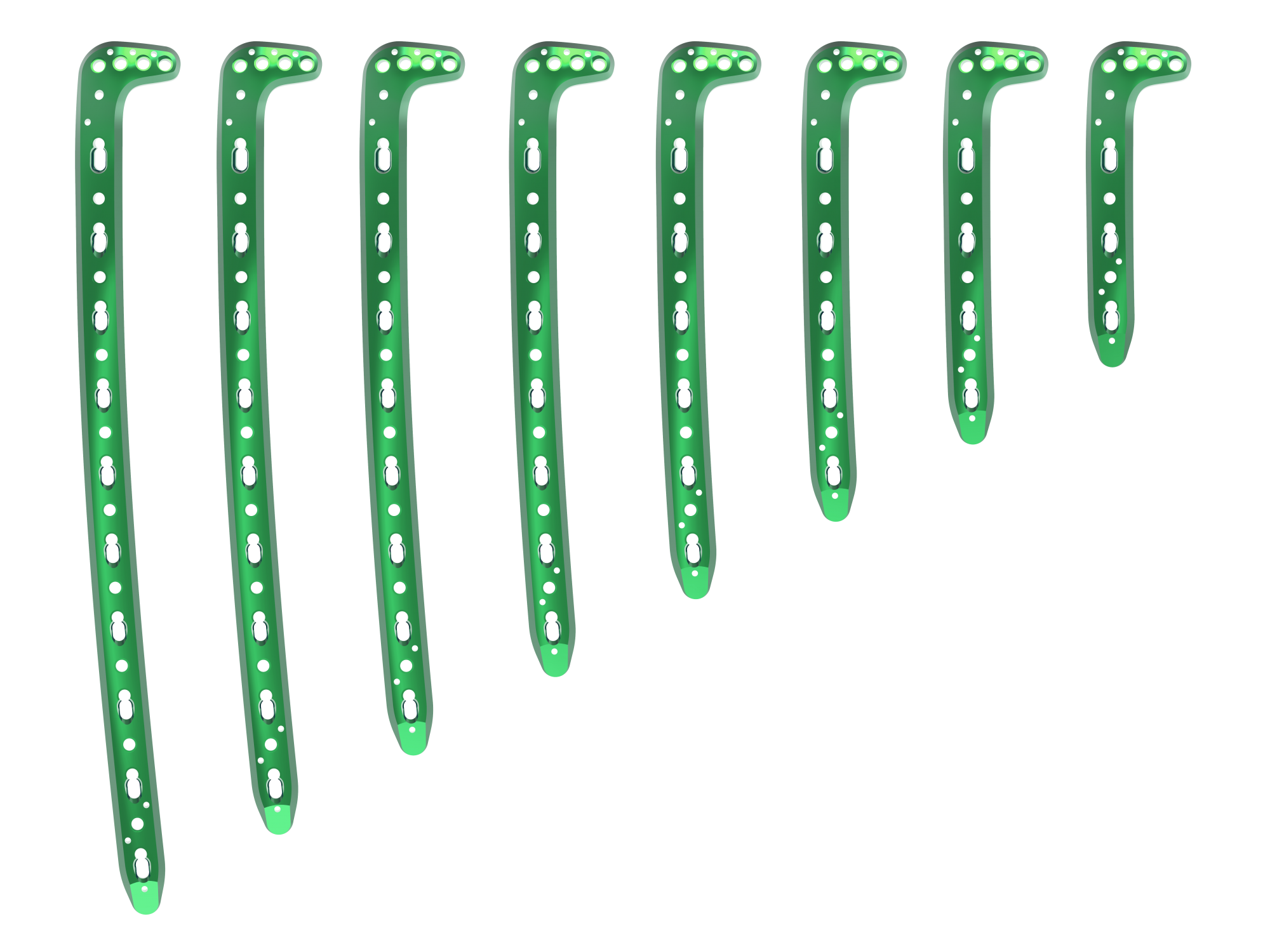

Anatomical plate; right & left

9 hole options between 3-19

TRUE LOCK Proximal Tibia Lateral Anatomic Plate are made of Ti6Al4V ELI material (ASTM F136)

The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
Limited-contact pro- file to avoid stress.

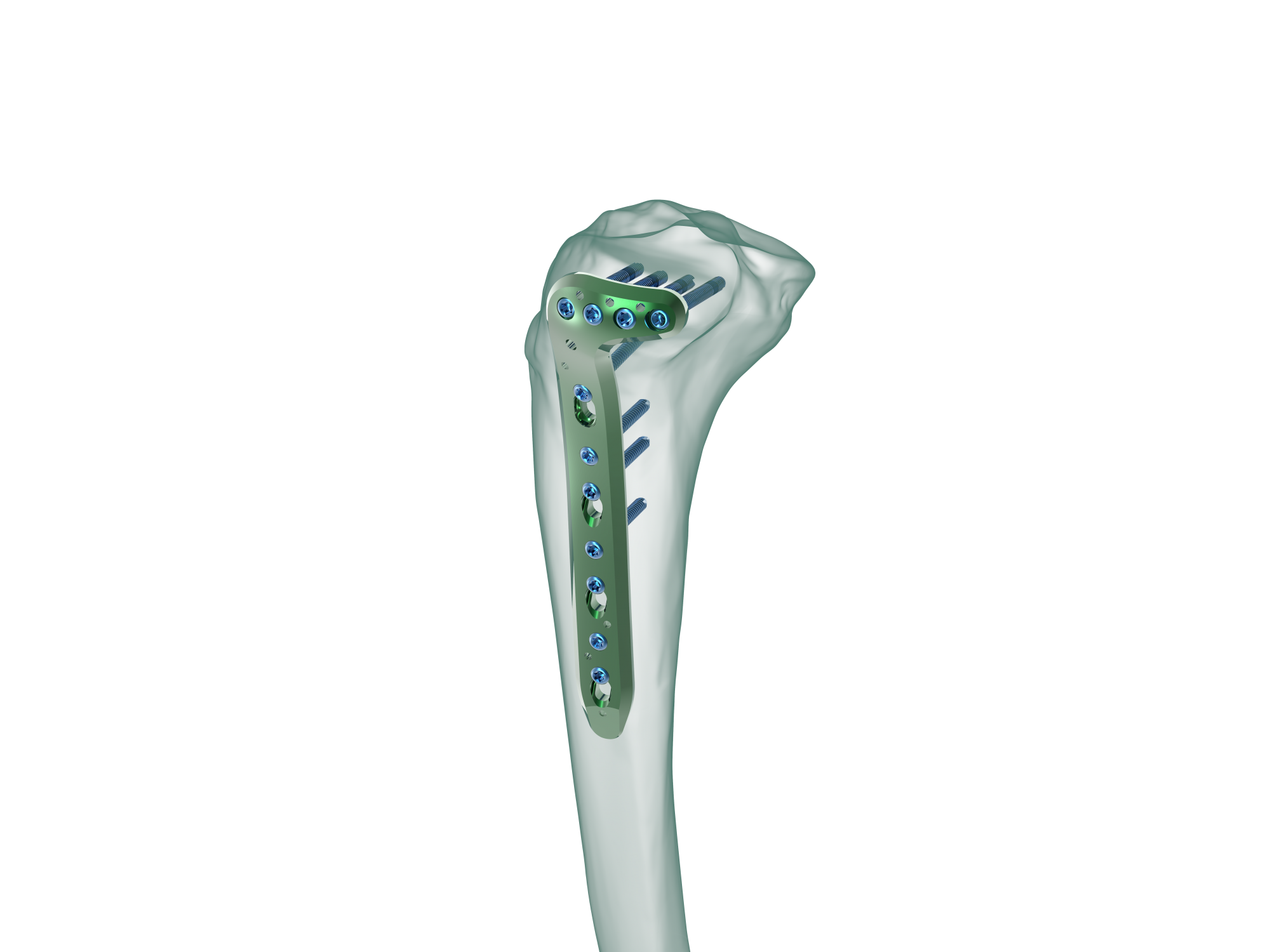

Anatomically contoured to match the lateral proximal tibia.
Three 2.1 mm holes for preliminary fixation with Kirschner wires, or meniscal repair with sutures.
Proximal bend “lower” than standard plate.
At the cancellous part of the bone near the joint 4,0 mm cancellous locking screw option supports plate and screw fit well; prevents it from pull out.
Images Gallery
