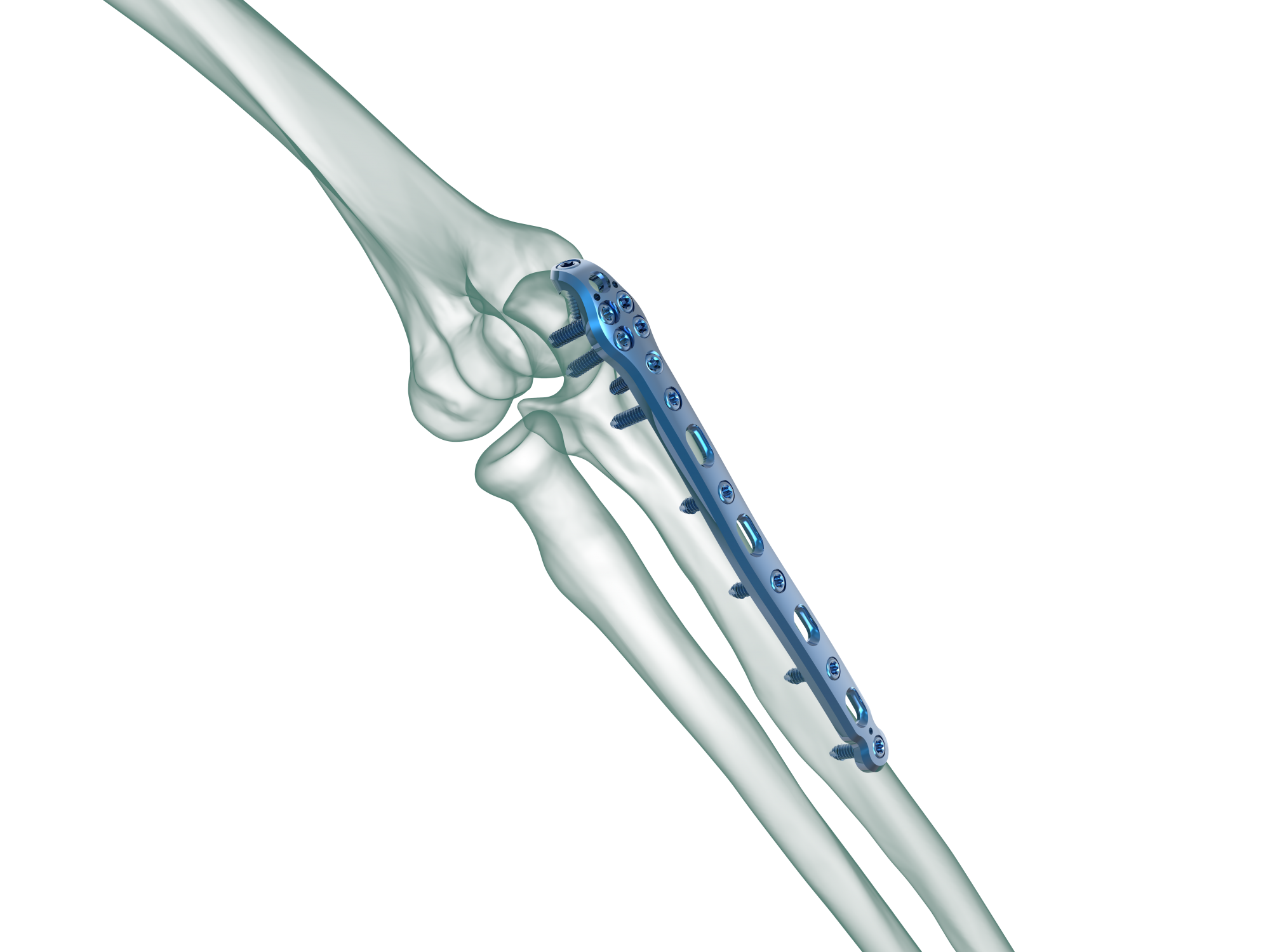

TRUE LOCK Olecranon Anatomic Plate

TRUE LOCK Olecranon Anatomic Plates are indicated for;

Complex extra- and intra-articular olecranon fractures
Pseudoarthroses of the proximal ulna
Simple olecranon fractures

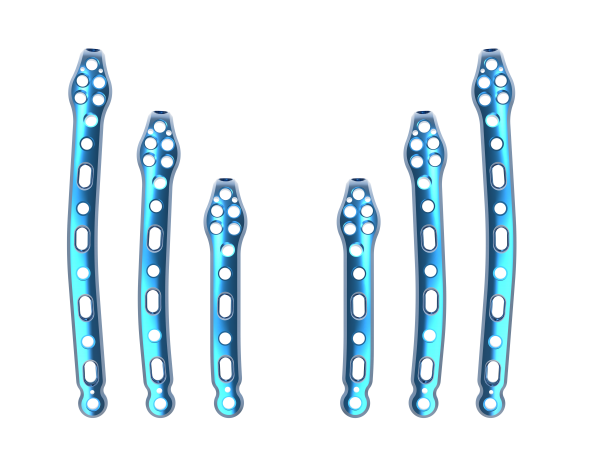

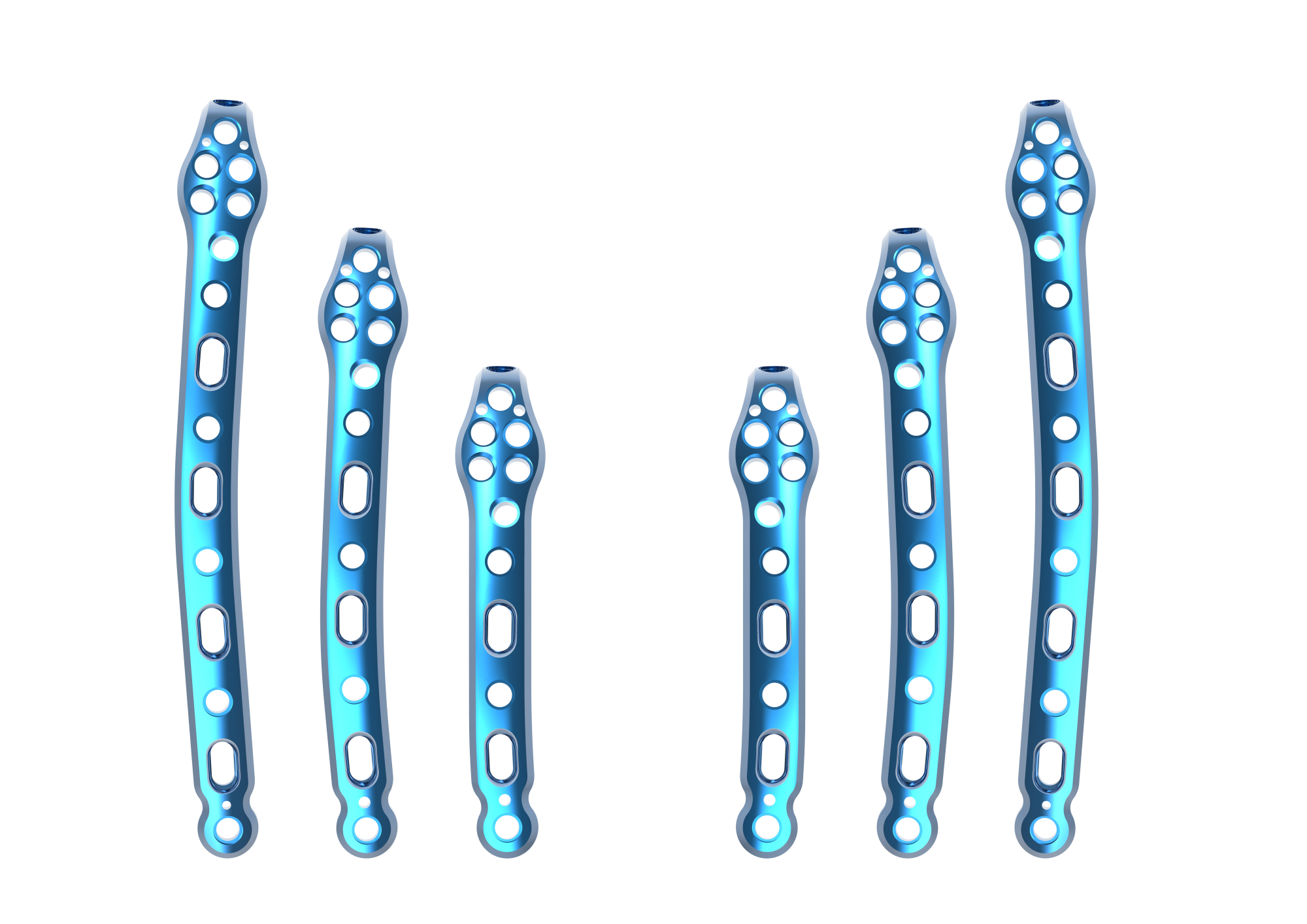

Anatomical plate; right & left

3 hole option between 6-10

TRUE LOCK Olecranon Anatomic Plates are made of Ti6Al4V ELI material (ASTM F136)

Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.

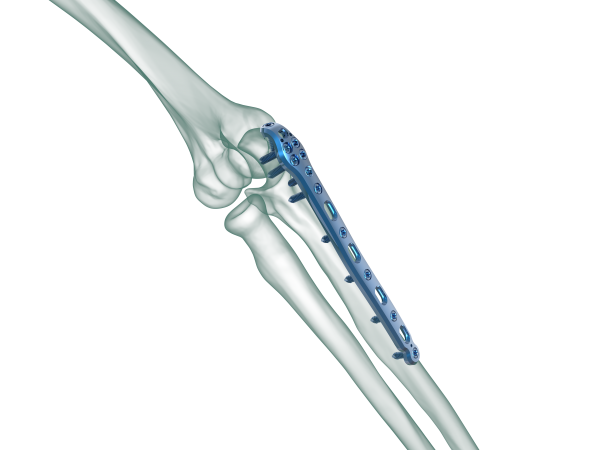

TRUE LOCK Olecranon Anatomic Plates are precontoured for anatomic fit. No need to bend during teh surgery.
Elongated Combi hole in the neck and shaft facilitate plate adjustment and allow locking or compression options.
The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
Various screws target to help stabilize the coronoid, thereby helping to restore bony and ligamentous struc- tures, which are important for elbow-joint stability.

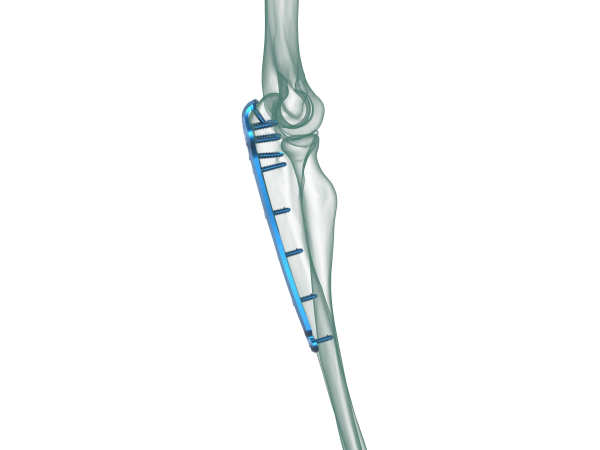

Long proximal extension and multiple screw options to secure small olecranon fragments to help neutralize the forces of the triceps muscle.
Kirschner wire holes accept Kirschner wires (up to 1.5 mm) to temporarily fix the plate to the bone, to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the bone.
